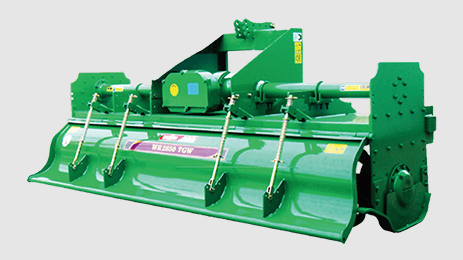

TGW Series Rotavators
Field large rotavator
Features
- High horsepower gearboxes suitable for large horsepower tractors make it possible to work with strong force.
- By minimizing the shaking of the tilting shaft and the shaking of the airframe during work, the fatigue of the work is reduced.
- Durability is enhanced with double-structured Sangf frames that can be used for a long time without distortion.
Model Specifications
| Model | Machine Size (mm) | Weight | Flanges | Blades | Tillage Width | Tractor | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| Length | Width | Height | (Kg) | (Pcs) | (Pcs) | (mm) | (HP) | |||
| WR | 2600 | TGW | 2670 | 1221 | 1387 | 1100 | 10 | 60 | 2600 | 120,130 |
| 2850 | 2950 | 1200 | 11 | 66 | 2850 | 125,150 | ||||
| 3050 | 3290 | 1300 | 12 | 72 | 3050 | 150,limit | ||||
Gear Configurations
| Conversion Gear | 540rpm | 1000rpm |
|---|---|---|
| 24 - 16 | 110 | 204 |
| 21 - 19 | 149 | 276 |
| 19 - 21 (default) | 182 | 337 |
| 16 - 24 | 248 | 459 |
